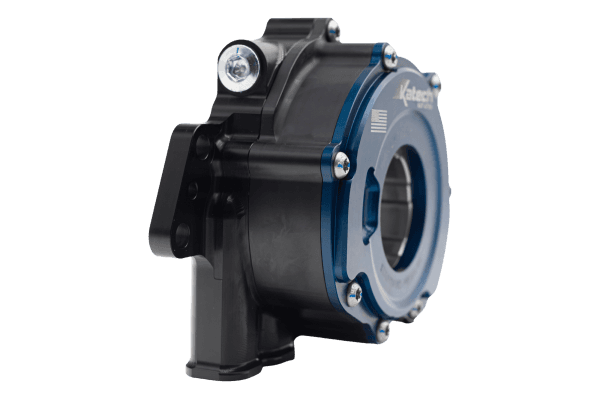

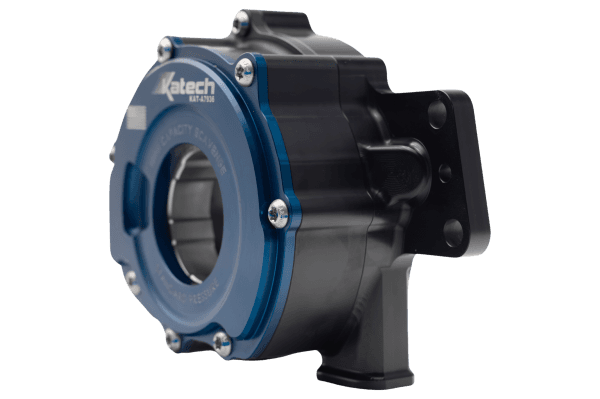

Katech TrackFlow™ LS7 & LS3 Billet High-Capacity Scavenge Dry Sump Oil Pump
NO CORE · NO COMPROMISE · READY FOR THE TRACK
The Katech TrackFlow™ LS7 & LS3 Dry Sump Billet High-Capacity Scavenge Oil Pump is the ultimate solution for LS7 and LS3 Dry Sump engines, which demand uncompromising oiling performance. Engineered as a direct replacement for the now-discontinued GM OEM pump (GM Part #12623097 / ACDelco #12623097), the Katech TrackFlow™ Oil Pump eliminates the need for a core exchange, making it easier than ever to upgrade your oil pump.
Built for high-RPM durability and precision, the Katech TrackFlow™ Oil Pump delivers increased scavenge capacity over both the factory pump and Katech’s Ported OEM Pump (KAT-A5069-LS7), ensuring superior oil control under extreme conditions.
MAGAZINE Katech Solves Issue of Discontinued GM LS7 and LS3 Dry Sump Oil Pumps
Katech Fills Oil Pump Void for Dry Sump Pump LS3, LS7
2025 PRI Product Showcase Award WINNER!
Katech TrackFlow™ LS7 & LS3 Billet High-Capacity Scavenge Dry Sump Oil Pump
- Direct OEM Replacement | Fits LS7 & LS3 Dry Sump Systems; Replaces GM #12623097 and Katech KAT-A5069-LS7 with NO Core Required
- Enhanced Scavenge Performance | 62% Increased Oil Scavenging Compared to the GM OEM Pump. 44% Increased Oil Scavenging Compared to the Katech High-Capacity Scavenge Ported Oil Pump Upgrade KAT-A5069-LS7.

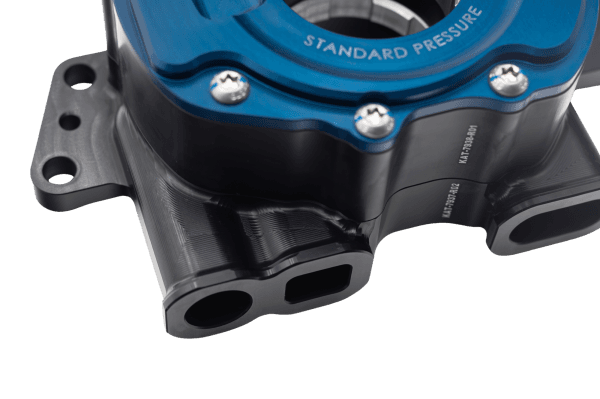

- Full Billet Construction | Machined from Premium-Grade Aluminum for Strength and Reliability.
- CNC Ported & Blueprinted | Precision-Machined to Exact Tolerances, Fully Documented and Serialized for Quality Assurance.
- Pre-Lubed & Ready to Install Saves time and ensures optimal startup protection.

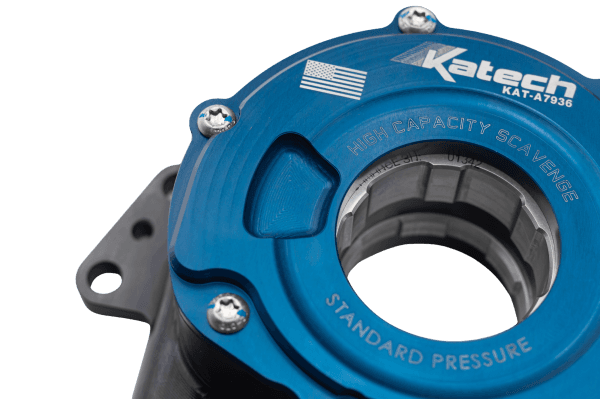

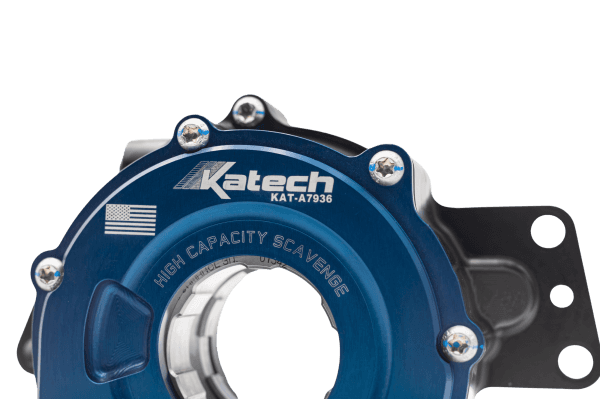

- Hardcoat Anodized Finish| Durable, Corrosion-Resistant Anodized with laser-etched Katech Performance Logo.
- Made in the USA | Proudly engineered, machined, and hand-assembled at Katech Engineering in Clinton Township, Michigan!

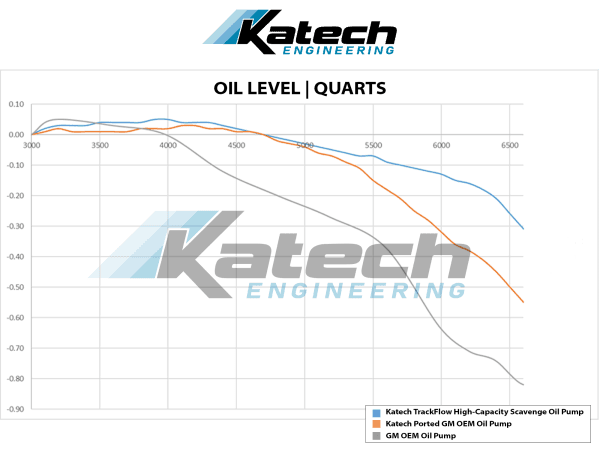

Performance Metric
|
Comparison
|
Improvement
|
Increased Scavenge
|
Compared to Discontinued OEM Pump (GM #12623097)
|
+62%
|
Increased Scavenge
|
Compared to Katech Ported OEM Pump (KAT-A5069-LS7)
|
+44%
|
SPECIFICATIONS
- MATERIAL | Billet Aluminum
- FINISH | Blue Hardcoat Anodized

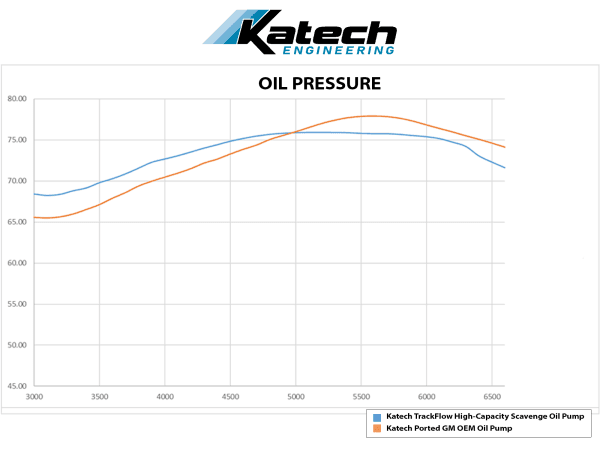

- PRESSURE | Standard
- WEIGHT | 4.4 LBS
- FITMENT | General Motors LS7 and LS3 Dry Sump Engines
IMPORTANT INSTALLATION NOTES

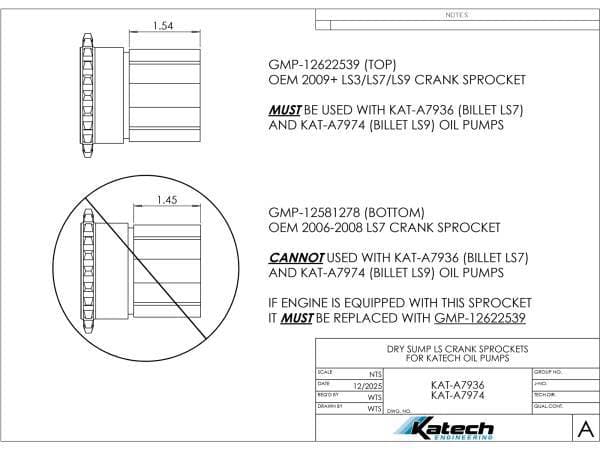

For LS7 or LS3 Dry Sump Engines that do not already have a GM LS9 Crank Sprocket, you MUST USE a GM LS9 Crank Sprocket (GM Part #12622539) for proper installation of the Katech TrackFlow™ LS7 & LS3 Billet High-Capacity Scavenge Oil Pump. Failure to change the crank sprocket will result in oil pump binding and WILL NOT BE COVERED UNDER WARRANTY.
TIMING CHAIN TENSIONER AND CLEARANCE REQUIREMENTS
The Katech TrackFlow LS7 & LS3 Billet High-Capacity Scavenge Dry Sump Oil Pump features increased scavenge stage capacity and a revised housing profile to support sustained high-load and endurance racing oil control. Due to this design, timing chain damper selection directly affects clearance with the oil pump body.
Approved Tensioner/Damper Configurations
The GM Gen IV LS2 Timing Chain Damper Kit (GMP-12588670) can be used only if the OE mounting bolts are replaced with shorter fasteners. The factory LS2 damper bolts may extend beyond the damper body and contact the oil pump housing, creating an interference condition.
Katech recommends verifying bolt depth and performing a trial fit during engine mock-up to confirm proper clearance between the tensioner assembly and pump body before final assembly.
