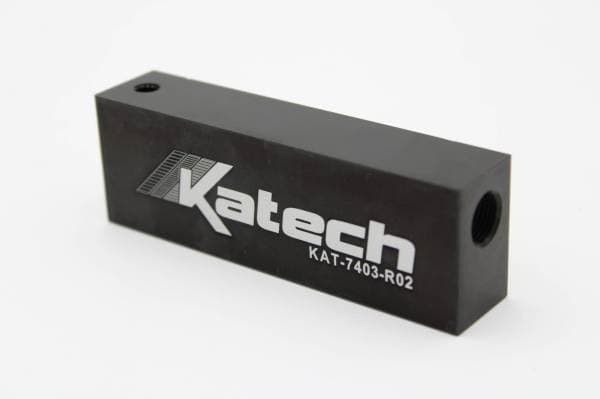

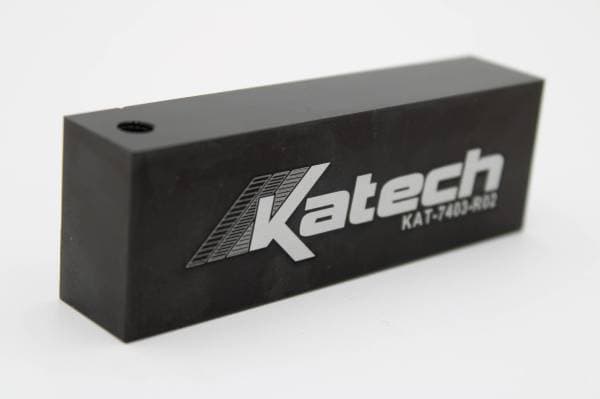

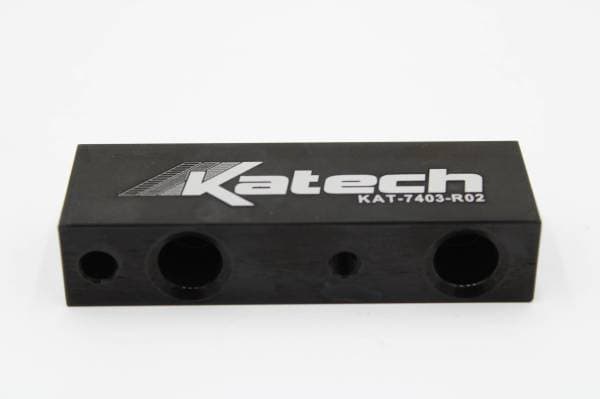

The Katech Solenoid MAP Sensor Relocation Block is a precision-machined solution designed to relocate the EVAP solenoid and MAP sensor when upgrading to a larger supercharger snout on Magnuson TVS systems. It improves engine bay packaging, provides a cleaner vacuum/boost reference, and helps maintain reliable sensor routing in tight forced-induction installations.
Developed specifically for use with the Katech 112mm Supercharger Snout and Katech 120mm Supercharger Snout for the Magnuson TVS2300 and TVS2650 superchargers, this relocation block moves key components out of interference-prone areas and into a more serviceable, build-friendly location—ideal for high-performance street and track applications.
Designed to relocate the EVAP solenoid and MAP sensor for improved clearance and accessibility
Engineered for use with:
Katech 112mm Supercharger Snout
Katech 120mm Supercharger Snout
Magnuson TVS2300 & TVS2650 superchargers
Integrated 1/16" NPT port for boost/vacuum reference
Helps reduce packaging conflicts in modified supercharger setups
Precision-machined aluminum construction
Clear anodized finish with laser-etched identification
Magnuson TVS2300 and TVS2650 supercharger installations using Katech 112mm or 120mm Supervharger Snouts
Performance street, track day, and competition builds requiring improved sensor placement and vacuum/boost reference routing
Note: Mounting hardware not included.
